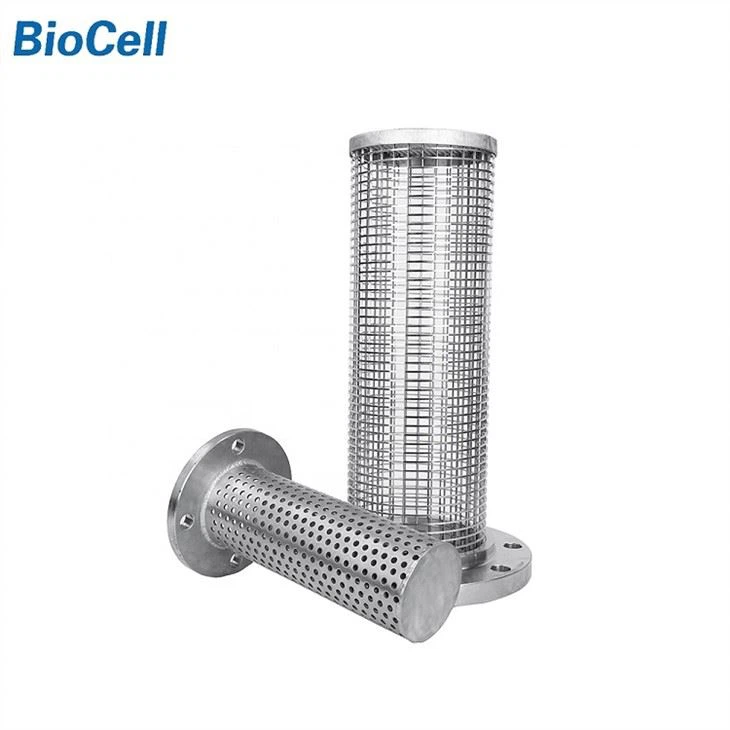

Biofilm Media Retention Screen
Txoj hauv kev ntawm biofilm media retention screen yog tsim los ntawm kev siv engineering. Cov qauv tsim thaum ntxov siv vertically mounted stainless-steel flat-panel sieves. Tam sim no kab rov tav configured stainless hlau wedge hlau sieves feem ntau yog siv nyob rau hauv MBBR daim ntaub ntawv. Thaum muab tso rau kab rov tav, nws txoj hauj lwm thiab kev taw qhia yog qhov zoo rau cov cab kuj los txhuam cov sieves thiab tsis txhob cuam tshuam cov cab kuj thiab khib nyiab.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Product Description
Txoj hauv kev ntawm biofilm media retention screen yog tsim los ntawm kev siv engineering. Cov qauv tsim thaum ntxov siv vertically mounted stainless-steel flat-panel sieves. Tam sim no kab rov tav configured stainless hlau wedge hlau sieves feem ntau yog siv nyob rau hauv MBBR daim ntaub ntawv. Thaum muab tso rau kab rov tav, nws txoj hauj lwm thiab kev taw qhia yog qhov zoo rau cov cab kuj los txhuam cov sieves thiab tsis txhob cuam tshuam cov cab kuj thiab khib nyiab.
Lub stainless hlau wedge-wire sieve ntxiab lub biofilm cab kuj thaum cia cov dej khib nyiab kho thiab tso biofilm ntws mus rau theem tom ntej ntawm kev kho mob.
|
|
Thaum ntsug-mounted tiaj tiaj sieves siv, lub tshuab cua-sparge yuav tsum tau mounted nyob rau hauv qab ntug ntawm lub panels kom lub sij hawm pulse lub sieves thiab tiv thaiv tej supposed ntawm pov tseg.
|
|
| Kab rov tav Biofilm Media Retention Screen Installation | Vertical Biofilm Media Retention Screen Installation |
MBBR Screen Technical Specifications
Tsis muaj. | Qauv | Txoj kab uas hla (mm) | Ntev (mm) | Aperture Loj (mm) | Wedge Hlau Dia (mm) | Kev sib txuas hom | Khoom siv |
1 | HS -150 | DN150 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
2 | HS -200 | DN200 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
3 | HS -250 | DN 250 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
4 | HS -300 | DN 300 Nws | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
5 | HS -350 | DN350 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
6 | HS -400 | DN400 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
7 | HS -450 | DN450 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
8 | HS -500 | DN500 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
9 | HS -550 | DN550 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
10 | HS -600 | DN 600 Nws | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
Cov txiaj ntsig ntawm BioCell Biofilm Media Retention Screen
* Muaj zog thiab ruaj khov dua vim qhov tsis kam vuam
* Ntau yam ntawm cov xov hlau profile muaj rau haum rau feem ntau lub tshuab
* High-precision qhov ntau thiab tsawg yog muaj los ua kom tau raws li koj xav tau
* Kev hloov pauv yooj yim yuav txo qis sijhawm
* Engineered rau koj specifications
* Muaj zog rau kev siv phab ntsa ntsug
* Kev tu tus kheej, thaum tsim los rau tus nqi ntws xav tau
